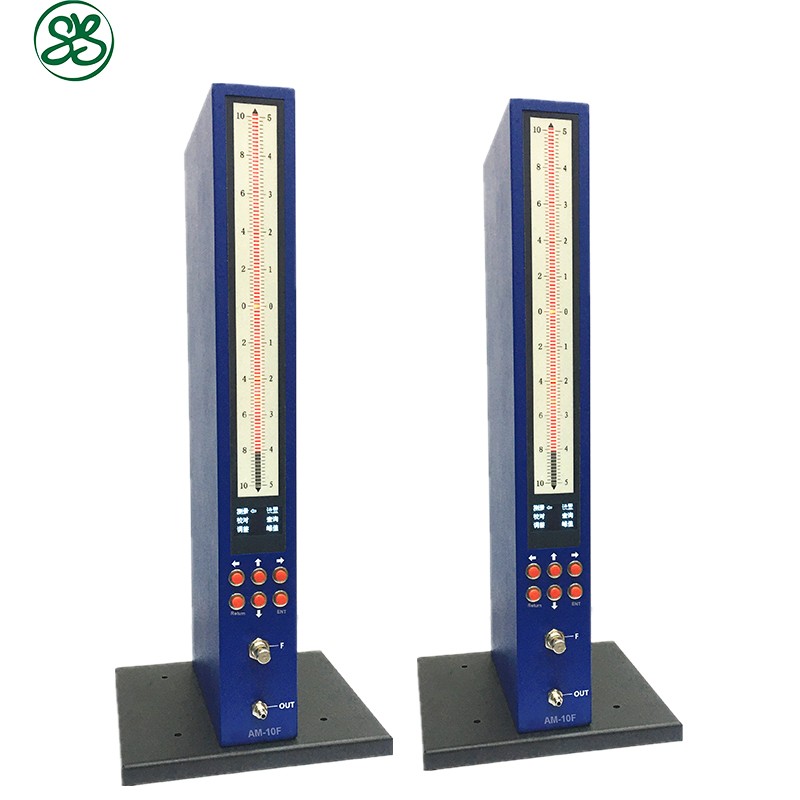

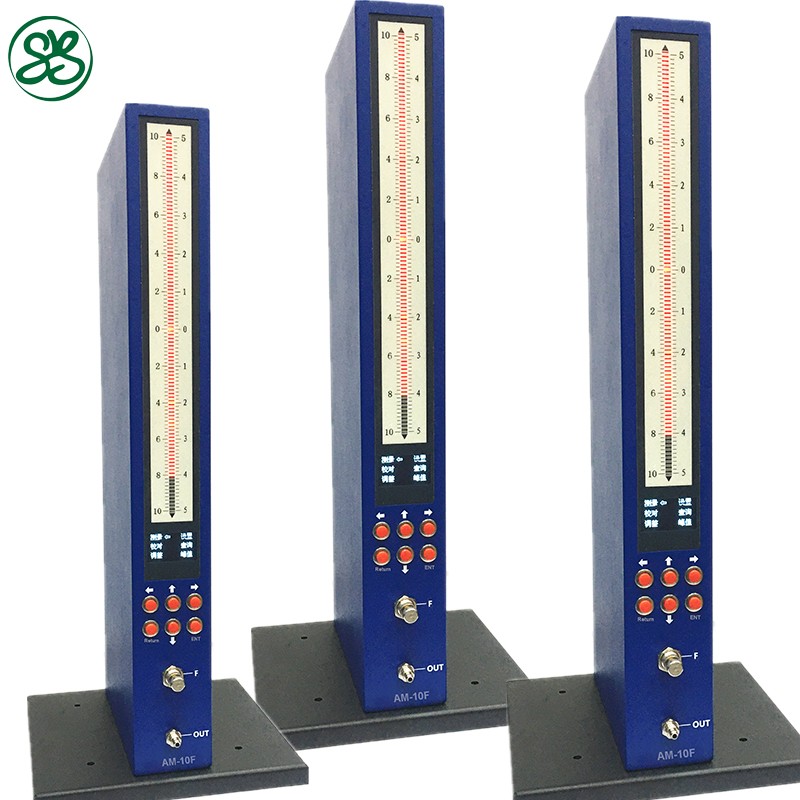

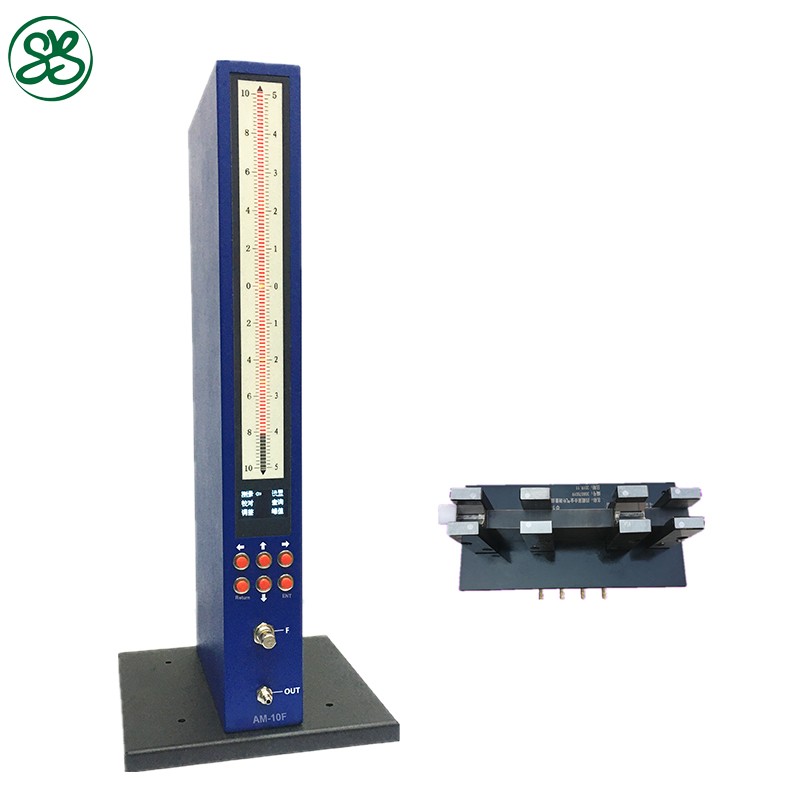

The Column Air Micrometer AM-10F

The Column Model (bar graph type) AM-10F Air Micrometer is easy to use in production areas or inspection rooms. It makes various measurement possible.

In addition to the dimensions, profile, position, and runout of the workpiece to be measured by multi-column combination can be quickly and accurately obtained.

Features:

Operation is simple, Compact and lightweight.
High precision, high stability, the resolution up to 0.1µm
At the same time display the relative value of the detection size, absolute value
Ten sets of programs can be set to carry out a variety of measurements
5 measurement ranges of 0.005mm~0.100mm
Display resolution of 0.0001mm~0.0010mm
Pass/Fail assessments can be easily made via the three-color LED bar graph
A fix magnification type with weight reduced compact body
Direct jump to mastering display via I/O device
101 dots 3 color LED bar (green, red, orange)
With a digital display function (operating mode or value of measurements).
Accommodates memory capture measurements and continuous capture measurements in addition to regular measurements.
2000 measurement data can be saved without loss of power failure

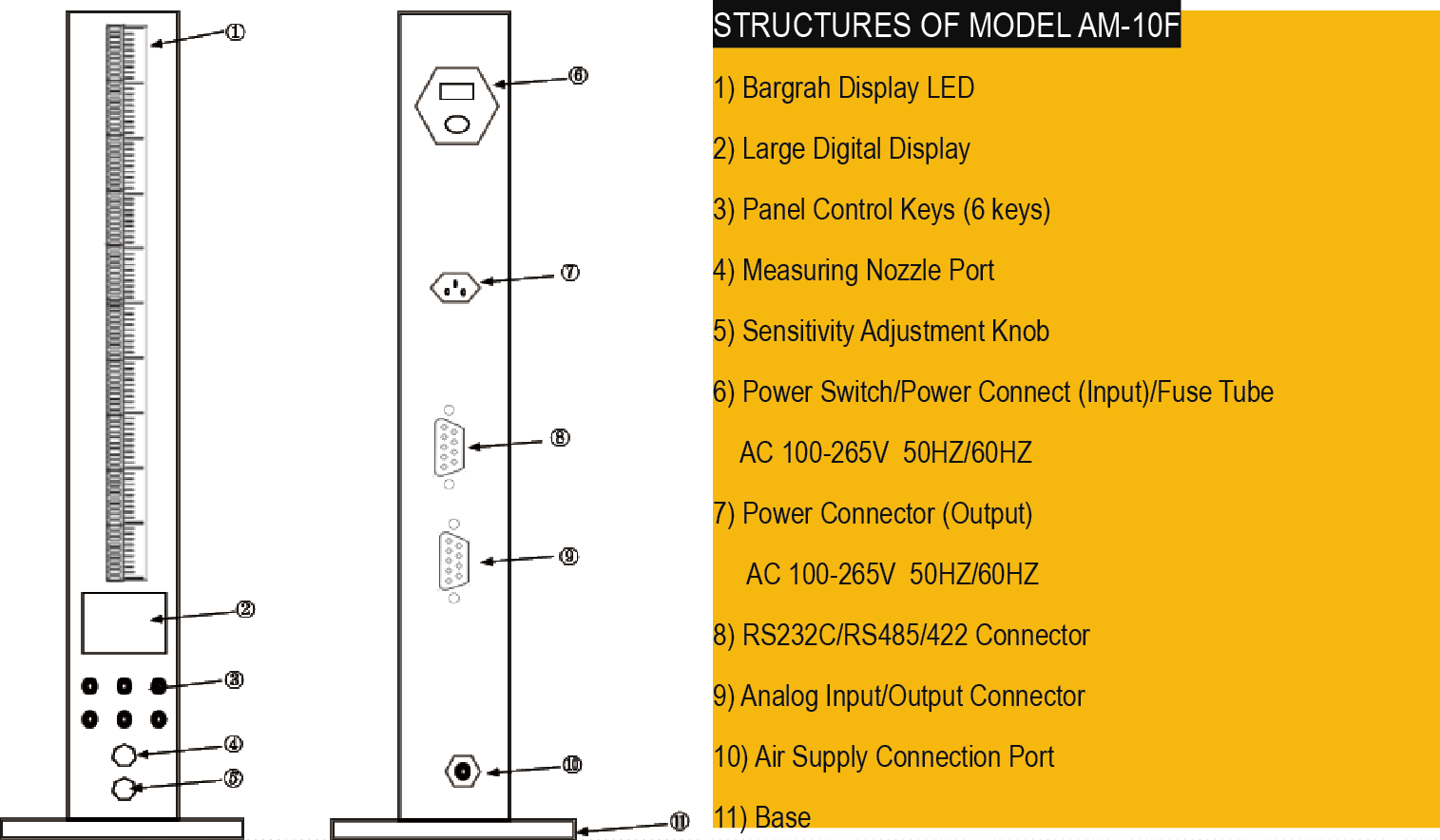

Structures

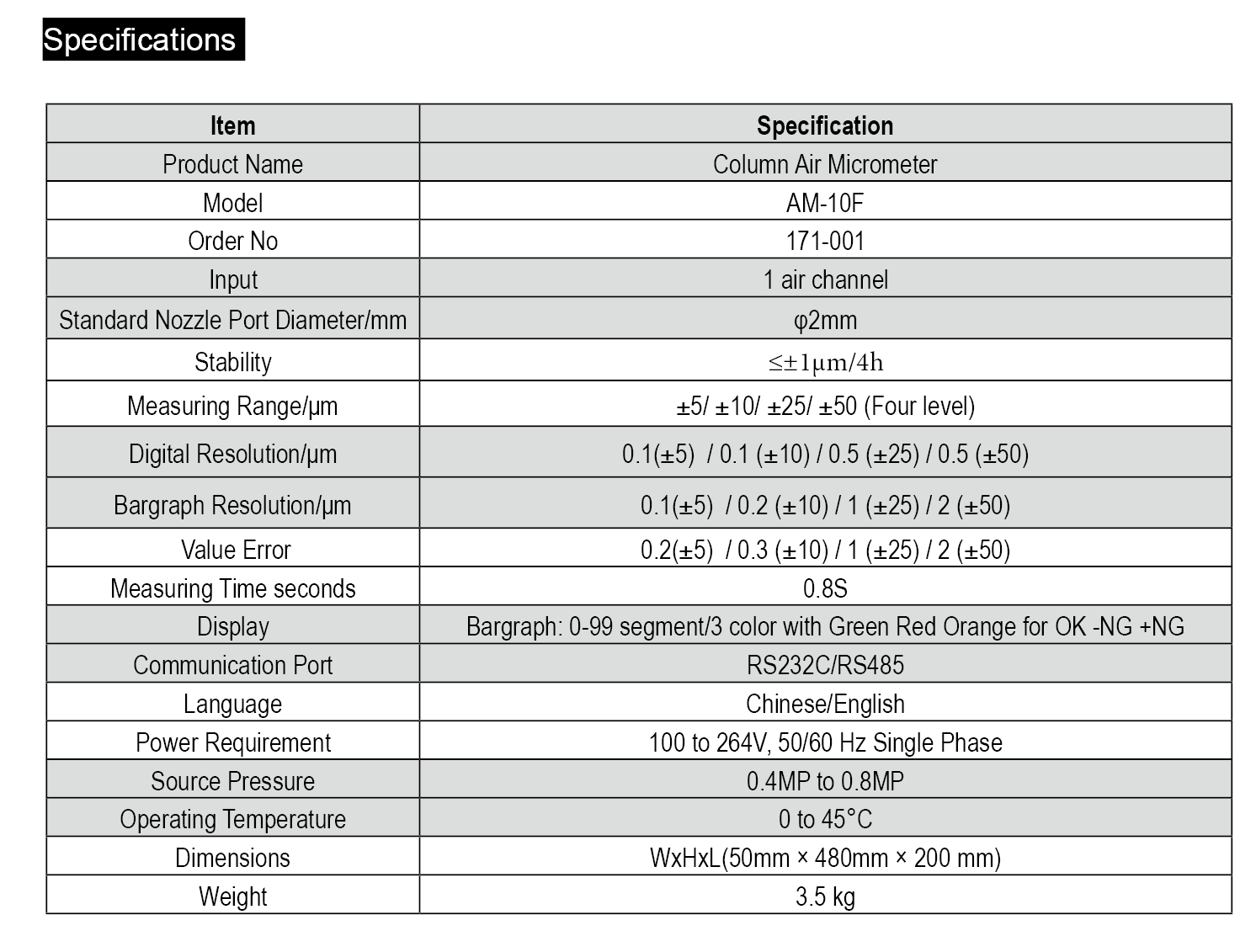

Items	Standard Performances
Measuring range	5µm	10µm	25µm	50µm	100µm
Displayresolution	0.1µm	0.2µm	0.5µm	1.0µm	2.0µm
Max.measuring error	0.2µm	0.4µm	1.0µm	2.0µm	4.0µm
Repeatability	0.1µm	0.2µm	0.5µm	1.0µm	2.0µm
Responsetime	Max 1.2s
